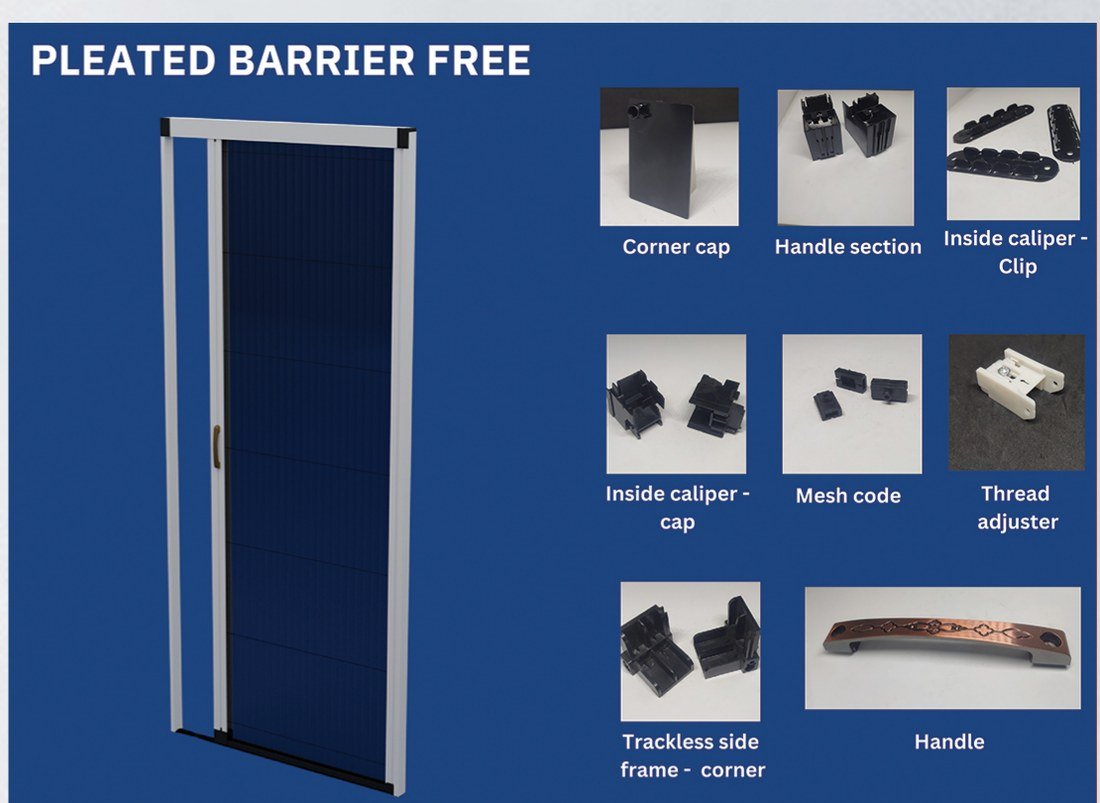

Second image shows the hardware set supplied with this system.
Mosquito Net Doors

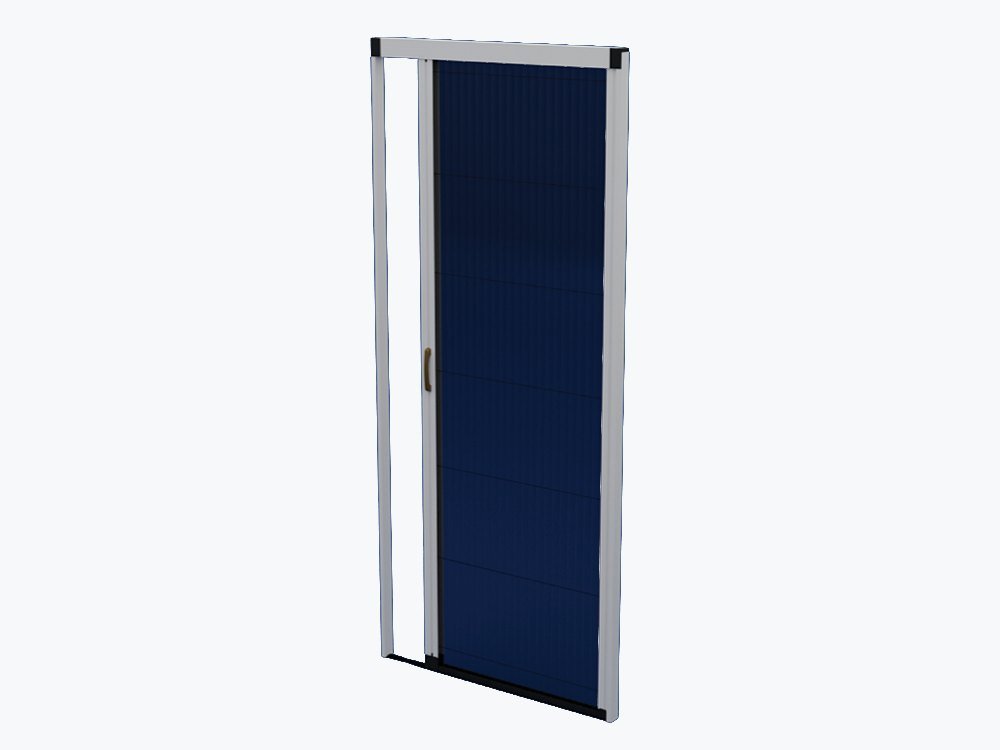

Pleated Barrier-Free System
Trackless pleated screen — nothing on the floor to trip over
Enquire by email
Enquire on WhatsApp
+91 98418 33719
Made to measure — price quoted after a free site measurement.
About this system
A pleated mesh screen that draws across the opening like a soft concertina and needs no bottom track at all. With nothing crossing the threshold there is no lip to trip on, nothing for a wheelchair or trolley to catch, and no floor channel collecting dust and grit. A thread adjuster keeps the pleats hanging evenly over the life of the screen, and the whole assembly folds back to a slim stack at the side.
Key features
- Completely trackless — flat, safe threshold
- Wheelchair, trolley and pram friendly
- No floor channel to collect dust
- Thread adjuster keeps pleats even
- Folds to a slim stack when open
- Made to measure
Specifications
| Frame | Aluminium with trackless side frame |
|---|---|
| Opening style | Pleated, side-drawing |
| Threshold | Barrier free, no bottom track |
| Adjustment | Thread adjuster |
| Mesh | Pleated polyester mesh |
| Sizing | Made to measure after site measurement |
Hardware & fittings supplied
- Corner cap
- Handle section
- Inside caliper - clip
- Inside caliper - cap
- Mesh code
- Thread adjuster
- Trackless side frame corner
- Handle
Best suited to: Main doors, balcony openings, homes with elders or young children
